9V877

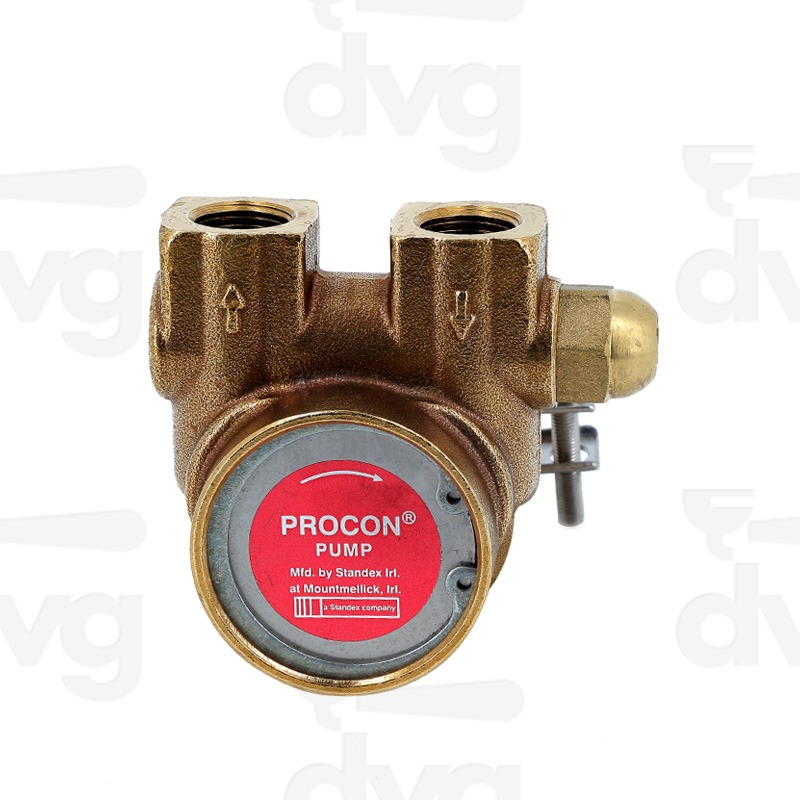

CLAMP RING PUMP PROCON 180 L/H

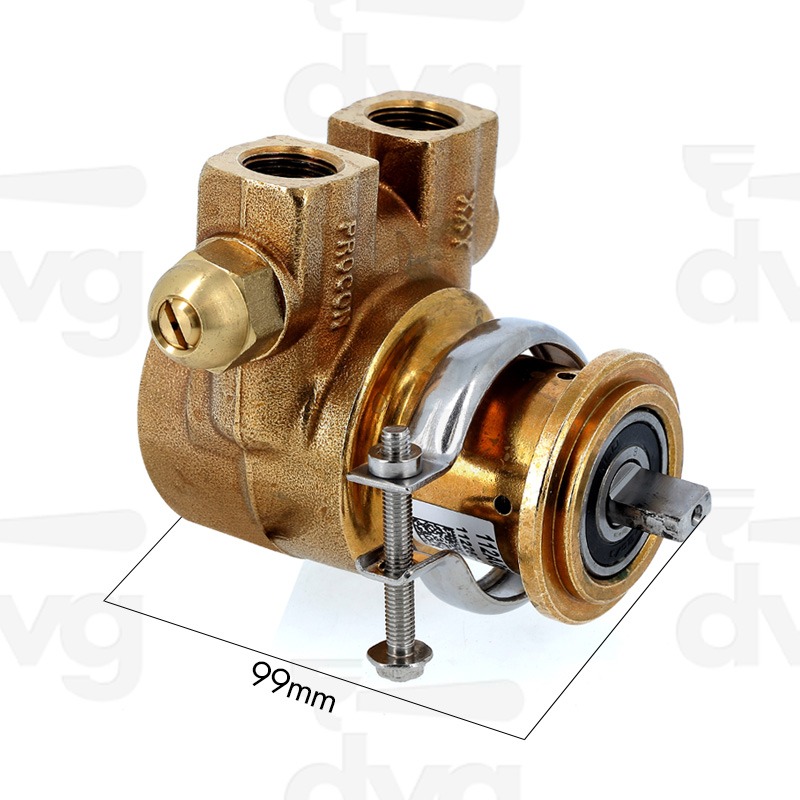

Balanced by pass, fitting 3/8 NPT code 9R10NPT-P, total lenght 99mm, body lenght 86mm. Suitable for La Spaziale (S5) coffee machines.
Before assembly, fill the pump with water and manually rotate the rotor shaft back and forth a few times. At the same time, grease the end of the pump rotor shaft and its coupling on the motor shaft. Make sure that the pump is protected by a filter (0.15mm mesh) to prevent the entry of particles and foreign bodies. Avoid running the pump dry. Attacks must be sufficiently blocked.
Make sure that any sealing material does not enter the pump.
